Solenoid Valve DN15

  • Details

Solenoid Valve DN15

Gas emergency shut off solenoid valve DN15, specially designed as gas pipe breaker for emergency use. It can be connected with gas leak detection sensor, fire alarm circuit or other intelligent sensor modules so that on site or remote shut down on gas supply (manually or automatically) is possible, hence ensuring the safety on gas usage.

The Solenoid Valve DN15 features an auto-close when strong vibration is detected.

Features &pictures

The application of gas: natural gas, liquefied gas, gas
Power Supply (DC) 9V-24V
Valve clearance signal DC9V-24VC or capacitive charge-discharge-type
Pressure 0 ~ 25Kpa
Insulation ≥ 5MΩ
Flow 2.5M3 / L
Cut off time <0.3S
The use of the environment -20 ℃ ~ 60 ℃ (air)
Material Aluminum or Brass
 Life >5 years
Usage Pipe Thread Connection (G)

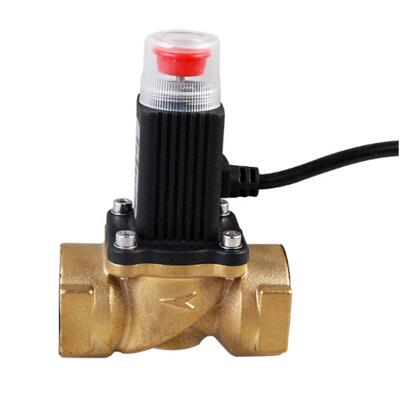

Solenoid Valve DN15

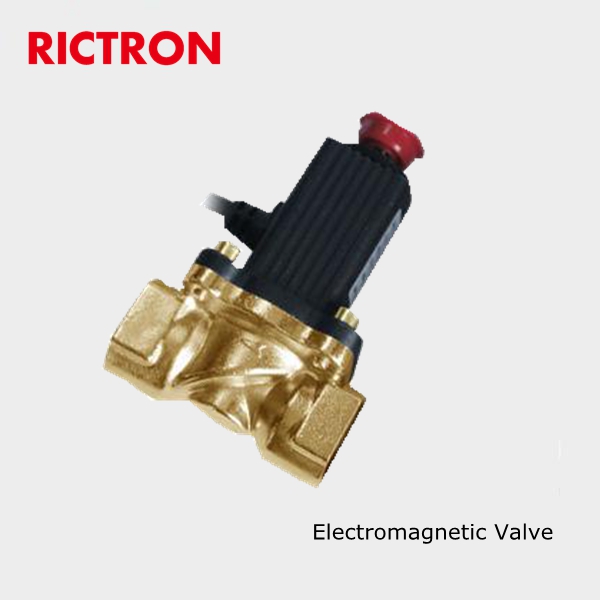

Solenoid Valve DN15 brass

Application of the Solenoid Valve DN15:

Gas leak (alarm) electromagnetic valve with the use of leak detectors, When the gas pipeline leaks ,it can turn off the gas pipeline for protection. The products comply with domestic and foreign (GJ / T 132-2001, GASTEC) safety standards. It is semi-automatic, manual open, self close. Usually pull up to  open the valve, so that the Combustible gases can ventilate normally. In the event of gas leakage, the detector will alarm, and theSolenoid Valve DN15 will closed imminently.

A safe home, with the exception of security is our aim.

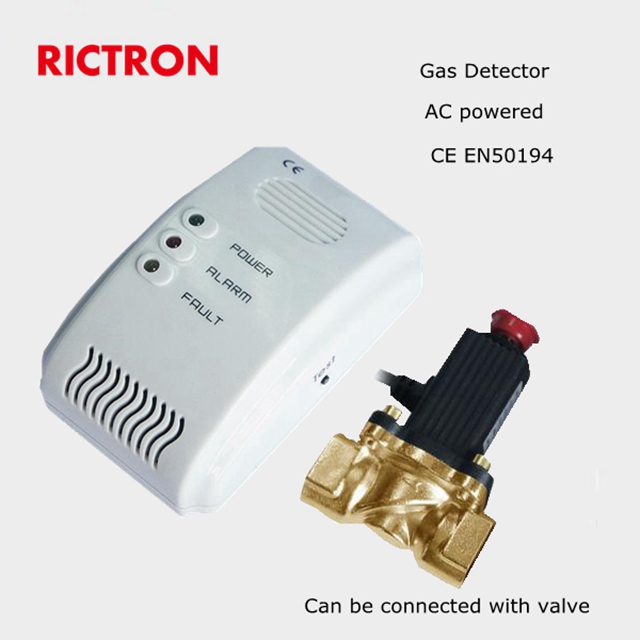

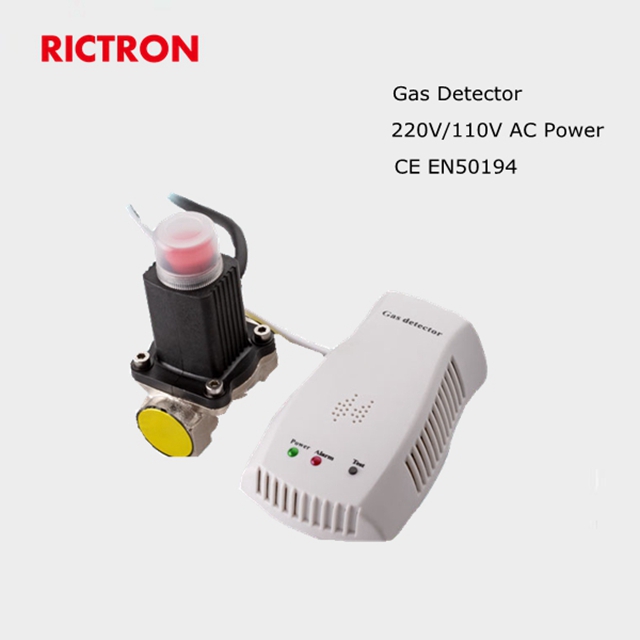

valve with gas detector

Note:

1. Installation, according to the direction of airflow.

2. The following three reasons for all the problems arising from, the Company shall not be responsible for:

A. Unauthorized disassembly to install a safety valve;

B. is not connected with the detectors;

C. failure detector alarm.

3.  Safety wire (white wire connected with the alarm signal cathode) interface with the probe pulse signal junction, should test the on-off.

Terms & Conditions

Trade term EXW, FOB, CIF,CNF
Minimum order 100pcs
Payment terms T/T,  Western Union,  L/C
Lead time 1-3 days for sample order ,10-15 days for bulk order
Delivery method By sea, by air, by express (DHL , UPS, FedEx, EMS, TNT)
Package Retail gift box
OEM LOGO, Package(accdoding to your request),based on the order 1,000pcs



Our service

1. In the case of non-artificial damage, All Solenoid Valve DN15 products purchased in our company are guaranteed to keep one year warranty.

2. If Solenoid Valve DN15 quality problems happen in guarantee period, our company will maintain for free.

3. Additionally, our company provides technical support and fittings for life.

4. If you are caught in some problems when using our Solenoid Valve DN15, welcome to contact your relevant salesman at any time, we promise to make positive response within 12 hours.

5. After expiry of a guarantee period, we provide to repair for life, and our clients just need to pay parts original cost.

Solenoid Valve DN15 Rictron

FQA

Q: 1. Can I have a sample order of this Solenoid Valve DN15?

A: Yes, we welcome sample order to test and quality check .

Q: 2. What is the lead time?

A:Sample needs 1-2 days, production time needs 10-15 days for order 100pcs.

Q: 3. How to proceed the order if I have logo to print?

A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. if mockup is ok, finally we will go to mass production.

Q: 4. Do you offer guarantee for the Solenoid Valve DN15?

A: Yes, we offer one year guarantee for the products.

Q: 5. Do you accept drop shipping?

A: Yes, it’s available.
