Kitchen Gas Leak Detector For Home Security System

  • Details

Kitchen Gas Leak Detector For Home Security System RCG412

Kitchen Gas Leak Detector is used for detecting the leakage of household gas, liquid gas and natural gas.  It is not only apply to home security system,but also be true of Battery-charging rooms/Underground utility tunnels/Boiler rooms/Manufacturing facilities/Parking garages and Transportation centers.



Kitchen Gas Leak Detector Product Features

  • Sensor: High accurate hot wire type sensor.
  • Gas type: Detects Natural Gas, LPG, Coal Gas, Combustible Gas alarm
  • Power Supply : 110V or 220V AC with 9V battery back-up
  • Indictors:  Power (Green), Alarm( Red) , Hush(Yelow)
  • Simple installation: ceiling or wall mounted
  • Certificate: CE, EN50194 approved Smart sensor Gas Alarm for home use
Model: RCG412                    Kitchen Gas Leak Detector with 220v
Power Source 110V or 220V AC with 9V battery back-up
Sensitivity 10%LEL
Power Consumption 1.7W
Operating Temperature -10~ 50°C
Ambient Humidity Less than 95% RH
Horn Level 85 Decibels at 10 feet
Standby Mode Green LED on
Alarm Mode Red LED flashes and an acoustic alarm
Fault Mode Yellow LED Flashing
Sensor faulty model yellow LED light
Type Of Gas Sensed Natural gas, town gas, LPG

Kitchen Gas Leak Detector RCG412 details pictures

Kitchen Gas Leak Detector RCG412

Kitchen Gas Leak Detector details

If you want 12V DC relay output, it can be RCG412V– Can be connected with shut off valve

Kitchen Gas Leak Detector RCG412V



Package and Shipment

Package and shipment RCG412V

*For Kitchen Gas Leak Detector mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer forwarder or ours.

*For sample,by express shipping(DHL ,FEDEX ,TNT ,UPS ,EMS,Special Line ,etc.)

*A Tracking Number will be sent to you via e-mail after your order has been shipped and we will keep in touch with you.

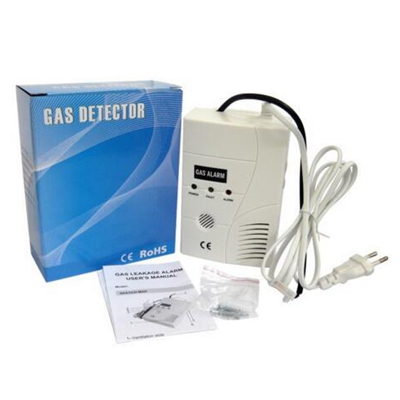

Kitchen Gas Leak Detector package

Kitchen Gas Leak Detector application:

1) Mounted on the wall or cabinet, about 30cm above the ground for LPG or about 30cm below the ceiling for coal gas and natural gas use.
 2) Ventilation hole showed as sketch map should be installed down.
 3) After power-on, the green LED shall be on and the red LED would flash for preheating of sensor until it is off; then the detector enter into the normal work status.
4) When the ignitable gas is detected, the red indicator shall be flashed with “di-di-di” alarm sound until the ignitable gas disappears.
5) If the sensor is invalid, the red indicator will be light and with “di—–” sound continuons.

Combustible gas detector alarm




Our Service

1. In the case of non-artificial damage, All Kitchen Gas Leak Detector products purchased in our company are guaranteed to keep one year warranty.

2. If Kitchen Gas Leak Detector quality problems happen in guarantee period, our company will maintain for free.

3. Additionally, our company provides technical support and fittings for life.

4. If you are caught in some problems when using our Kitchen Gas Leak Detector, welcome to contact your relevant salesman at any time, we promise to make positive response within 12 hours.

5. After expiry of a guarantee period, we provide to repair for life, and our clients just need to pay parts original cost

415-why choose us Combustible gas detector

Trade term EXW, FOB, CIF,CNF
Minimum order 500pcs
Payment terms T/T,  Western Union,  L/C
Lead time 1-3 days for sample order ,10-15 days for bulk order
Delivery method By sea, by air, by express (DHL , UPS, FedEx, EMS, TNT)
Package Retail gift box
OEM LOGO, Package(accdoding to your request),based on the1,000pcs



Kitchen Gas Leak Detector Certificate: CE and EN50194

Combustible gas detector certificate


FQA

Q: 1. Can I have a sample order of this Kitchen Gas Leak Detector?

A: Yes, we welcome sample order to test and quality check.

Q: 2. What is the lead time?

A:Sample needs 2-3 days, production time needs 10-15 days for order 2000pcs.

Q: 3. How to proceed the order if I have logo to print?

A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. if mockup is ok, finally we will go to mass production.

Q: 4. Do you offer guarantee for this Kitchen Gas Leak Detector ?

A: Yes, we offer one year guarantee for the products.

Q: 5. Does this gas alarm can do the 12V power or 110v power?

A:Yes, it can do that as per your request.

Q: 6. Does this gas alarm can connect with solenoid valve to use?

A:Yes, this combustible gas alarm can have a 12V DC wire to connect with valve.
